Fabtech 6" 4LINK SYS W/ 2.5 & 2.25 17-20 FORD F250/F350 4WD DIESEL K2244DL

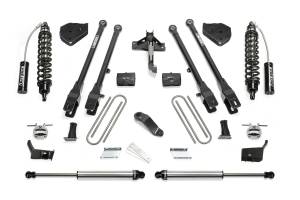

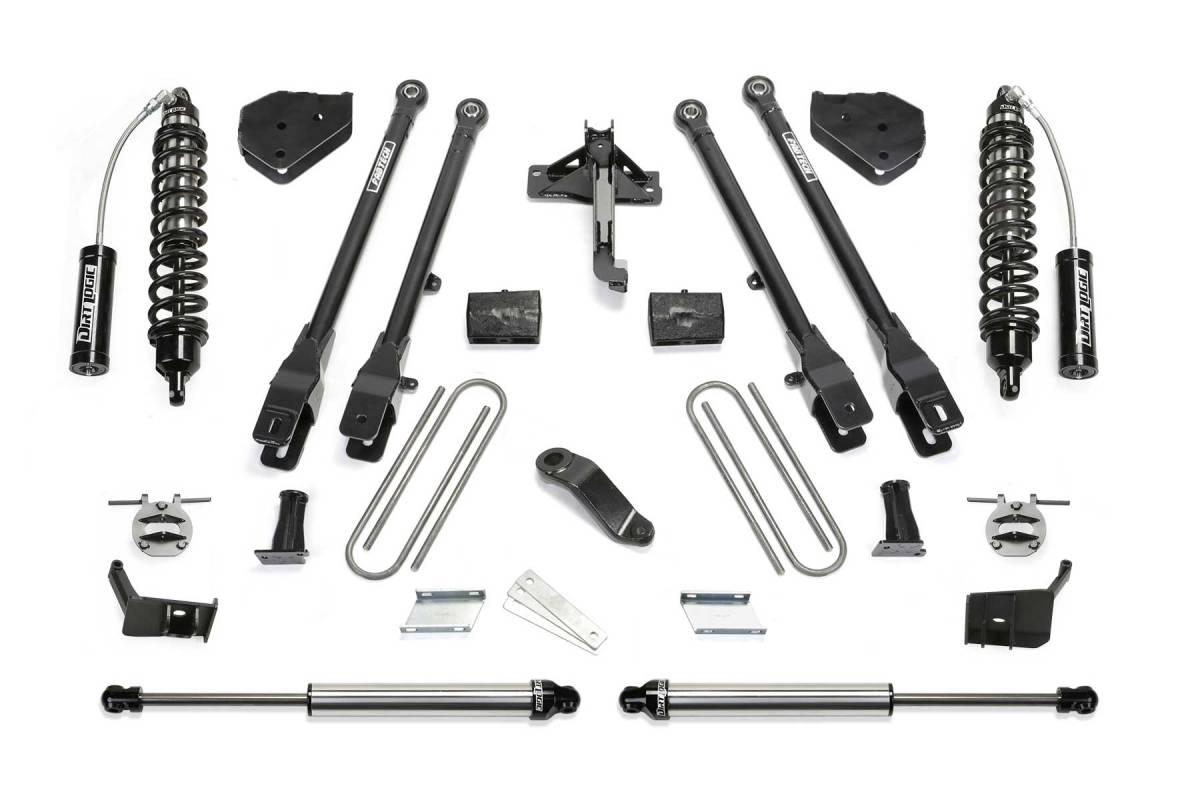

For the ultimate in suspension performance for the Super Duty we offer a bolt on 4 Link System that provides unsurpassed articulation and wheel travel. These 2in diameter heavy wall links feature race style 1in Uniballs for superior strength. Thick 1/4in steel brackets secure the 4 Links to the frame without cutting or welding. The system also includes Sway bar drops, Trac Bar relocation bracket, Pitman Arm, and a  rear Block & U-Bolt kit.

TIRE SIZE - 37/12.50R17 WHEEL - 17X9 W/4 3/4" BS W/MINOR TRIMMING; TIRE SIZE - 37/12.50R18 WHEEL - 18X9 W/4 3/4" BS W/MINOR TRIMMING; TIRE SIZE - 37/13.50R20 WHEEL - 20X9 W/5" BS W/MINOR TRIMMING; 3. NON DUALLY MODELS ONLY.; 42. WILL NOT FIT GAS MOTORS.; 163. VEHICLES EQUIPPED WITH 2 PIECE DRIVESHAFT REQUIRE FTS419.; 175. VEHICLES W/ FACTORY REAR SWAY BAR MUST ORDER EXTENDED SWAY BAR LINK KIT PART NUMBER FTS22276.
