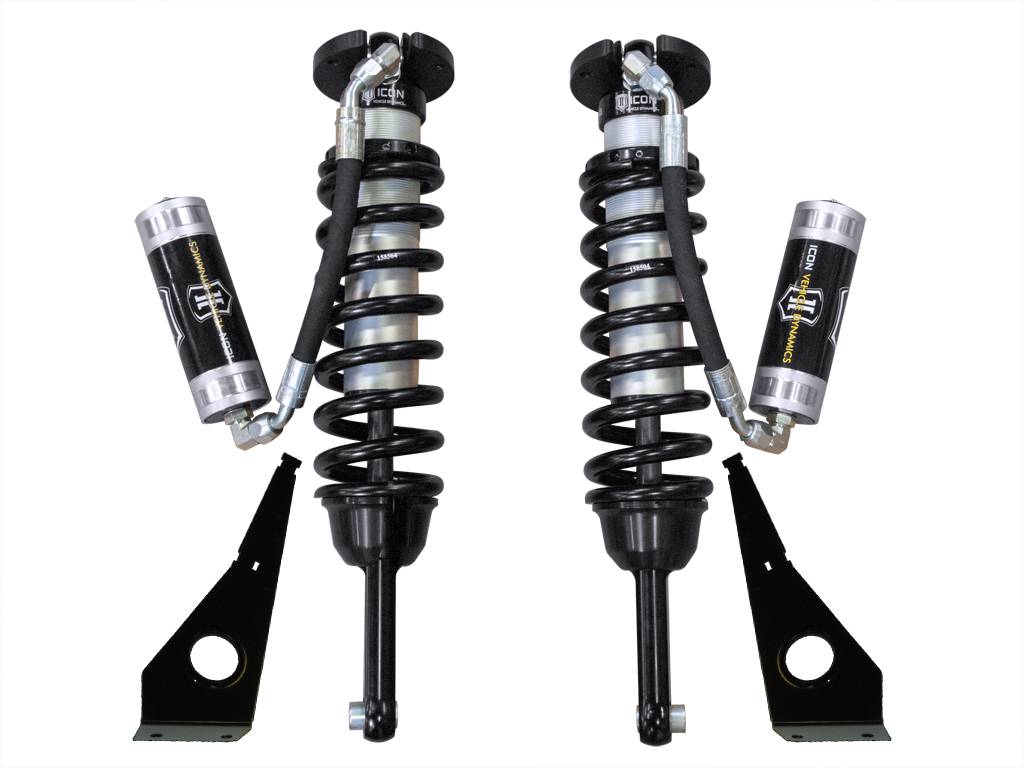

ICON Vehicle Dynamics 05-UP TACOMA 2.5 VS RR COILOVER KIT 58730

Coilover Spring and Shock Assembly

FRDK-58730

2005-UP TACOMA 2.5 VS REMOTE RESERVOIR COILOVER KIT

  • Adjustable ride height from 0" - 3.5"
  • Race shock piston with flutter stack compression valving
  • Kit Includes Sway bar relocation brackets
  • Kit also Includes Reservoir Mounting Brackets
  • Cad-plated threaded body / Extreme Weather Plating Option Available
  • Billet aluminum upper mount
  • 5/8" PTFE-lined spherical bearing
  • Completely re-buildable
  • Hose Length Optimized for Increased Fluid Transfer
  • Mounting Bracket Orients Reservoir for Optimum Tire Clearance
  • External Reservoir Ensures Maximum Cooling
  • Chrome-silicon spring
  • 250 PSI nitrogen-charged internal reservoir

Pricing: $1,749.95

Qty:
Free Ground Shipping On All Orders over $100.00 (some exclusions apply)

Description

ICON Vehicle Dynamics has taken their already perfect performing coilover shocks and given it the heat dissipation and long lasting performance of a full blown race shock. All of this has been developed to bolt on and install with ease. They increase suspension travel and dramatically increase the capabilities of your Tacoma's front suspension. These coilovers come complete with all the hardware necessary to complete the installation as well as a sway bar relocation bracket kit to adjust the location of the sway bar to clear the larger shock.

Factory Wheels & Tires Fitment: Yes

  • Recommended Aftermarket Wheels: 8.5" wide wheel with 4.75" backspace
  • Recommended Aftermarket Tires: 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)

  • Details

    Shipping Information

    • Item Requires Shipping
    • 53.0 lbs.
    • W12.0000” x H8.0000” x L27.0000”
    • Free Ground Shipping On All Orders over $100.00 (some exclusions apply)
