ICON Vehicle Dynamics
Click on image to zoom

ICON Vehicle Dynamics 91-97 LAND CRUISER 80 SERIES 3" STAGE 1 SUSPENSION SYSTEM K53091

Suspension Lift Kit

(0) Reviews: Write first review
FRDK-K53091

1991-1997 TOYOTA LAND CRUISER 80 SERIES 3" LIFT STAGE 1 SUSPENSION SYSTEM

  • 3” lift height
  • Approximately 40% increased front wheel travel over stock
  • Approximately 35% increased rear wheel travel over stock
  • ICON-engineered dual rate coil springs provide exceptional on-road ride quality and outstanding off-road performance
  • Vehicle specific tuned 2.0 Aluminum Series front and rear shocks offer superior shock damping and control
  • 2.0 aluminum body IFP shocks with 5/8" shaft
  • Corrosion resistant anodized aluminum shock body
  • 6061 aircraft grade aluminum CNC machined components
  • 100% bolt-on design means no drilling, cutting or welding necessary for install

Pricing: $1,719.55

Qty:
Free Ground Shipping On All Orders over $100.00 (some exclusions apply)

Description

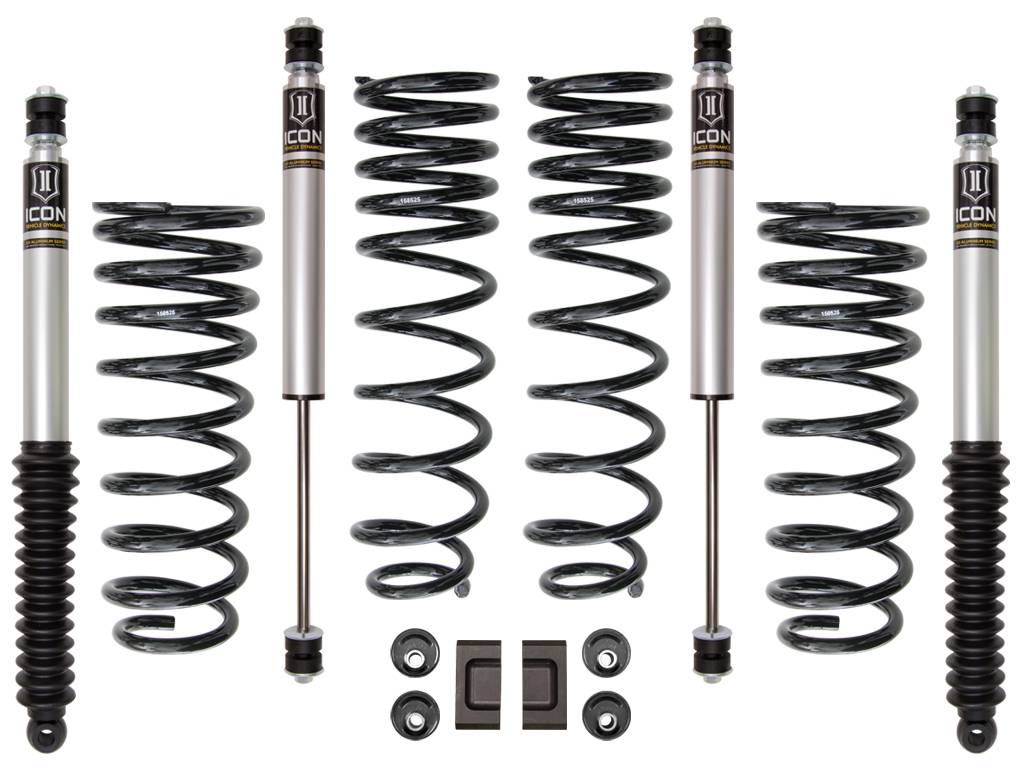

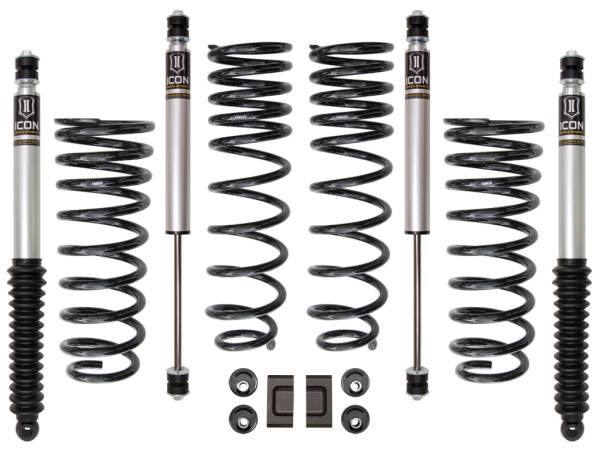

After an in-depth R&D process, ICON engineers have developed a 3” suspension system for the 80 Series that is aimed to improve on-road handling characteristics while also maximizing the Land Cruiser’s off-road potential. This Stage 1 system includes ICON-designed dual rate coil springs, caster correction bushings, sway bar relocation components, all bracketry and hardware required for install, and ICON Vehicle Dynamics 2.0 Aluminum Series shocks that feature a vehicle specific valving for optimized ride quality and balanced damping front to rear. This ICON Stage 1 System is the perfect entry level suspension system for drivers seeking a quality on-road ride with exceptional off-road characteristics as well.

OEM Wheels & Tires Fitment: Yes

  • Recommended Aftermarket Wheels: 17x8.5" with 4.63” Backspace
  • Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
  • APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE

    • Details

    Categories

    Shipping Information

    • Item Requires Shipping
    • 109.0 lbs.
    • W13.0000” x H7.0000” x L21.0000”
    • Free Ground Shipping On All Orders over $100.00 (some exclusions apply)
