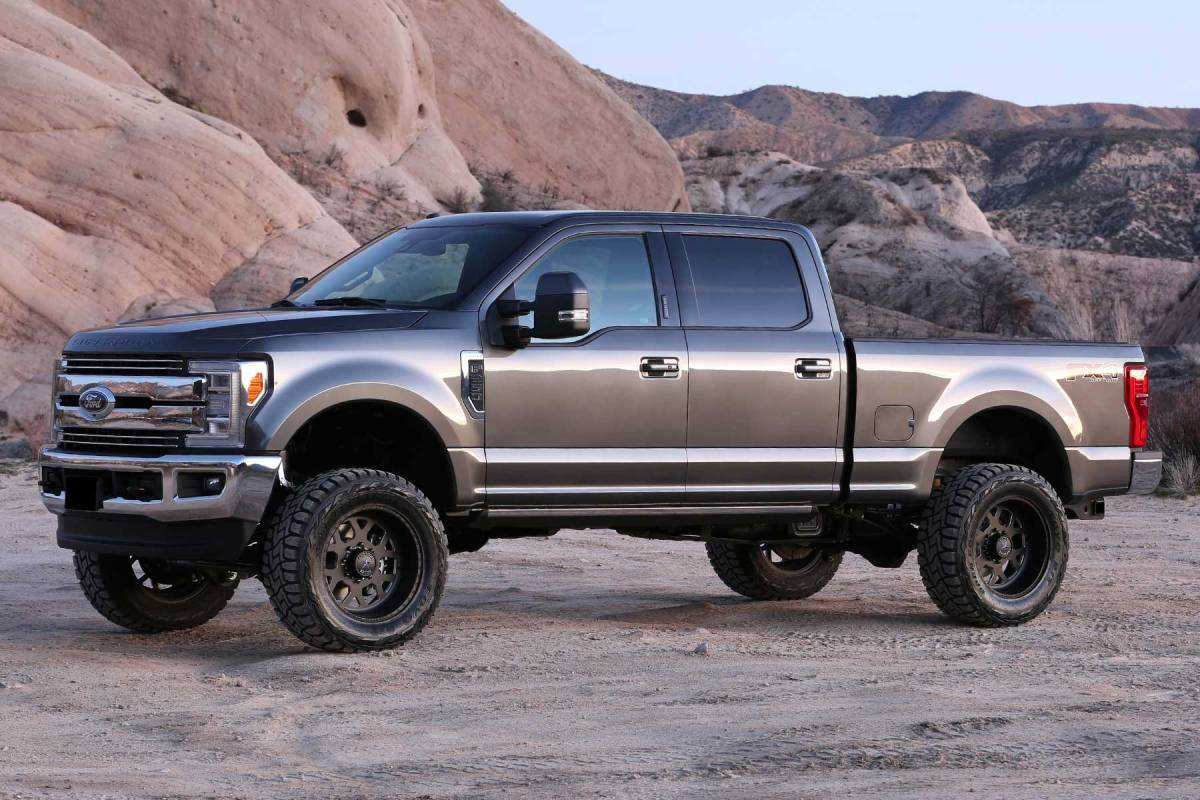

Fabtech 4" 4LINK SYS W/COILS & STEALTH 17-20 FORD F250/F350 4WD DIESEL K2216M

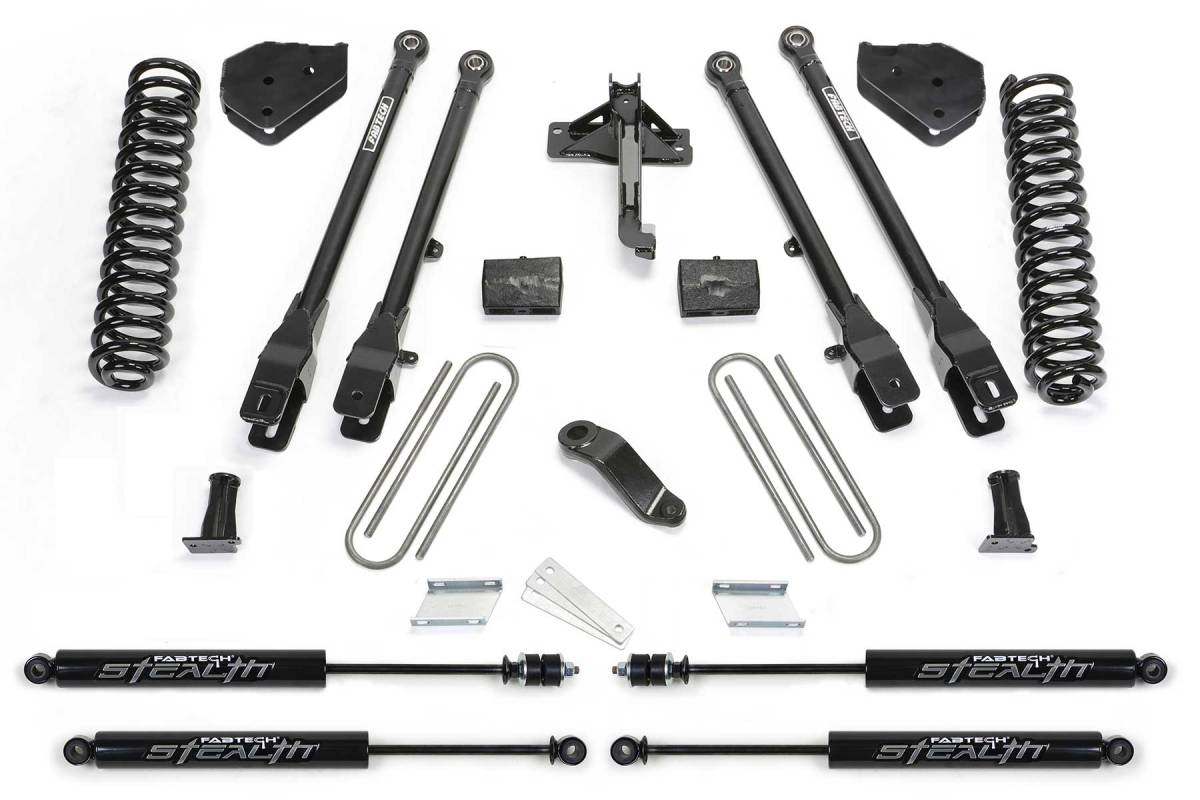

For the ultimate in suspension performance for the Super Duty we offer a bolt on 4 Link System that provides unsurpassed articulation and wheel travel. These 2'' diameter heavy wall links feature race style 1'' Uniballs for superior strength. Thick 1/4'' steel brackets secure the 4 Links to the frame without cutting or welding. This 4 Link system allows the use of our replacement Coil Springs. The system also includes Sway bar drops, Trac Bar relocation bracket, Pitman Arm, and a rear Block & U-Bolt kit. This kit includes front and rear Stealth Shocks.

TIRE SIZE - 35/12.50R17 WHEEL - 17X9 W/4 3/4" BS W/MINOR TRIMMING; TIRE SIZE - 35/12.50R18 WHEEL - 18X9.5 W/4 3/4" BS W/MINOR TRIMMING; TIRE SIZE - 35/12.50R20 WHEEL - 20X9 W/5" BS W/MINOR TRIMMING; 3. NON DUALLY MODELS ONLY.; 42. WILL NOT FIT GAS MOTORS.; 165. SOME 2017 MODELS MAY REQUIRE A DUAL STEERING STABILIZER FOR OVERSIZED TIRES. ORDER DIRT LOGIC-FTS220512, DIRT LOGIC W/RESI-FTS221162 OR STEALTH-FTS8046.
