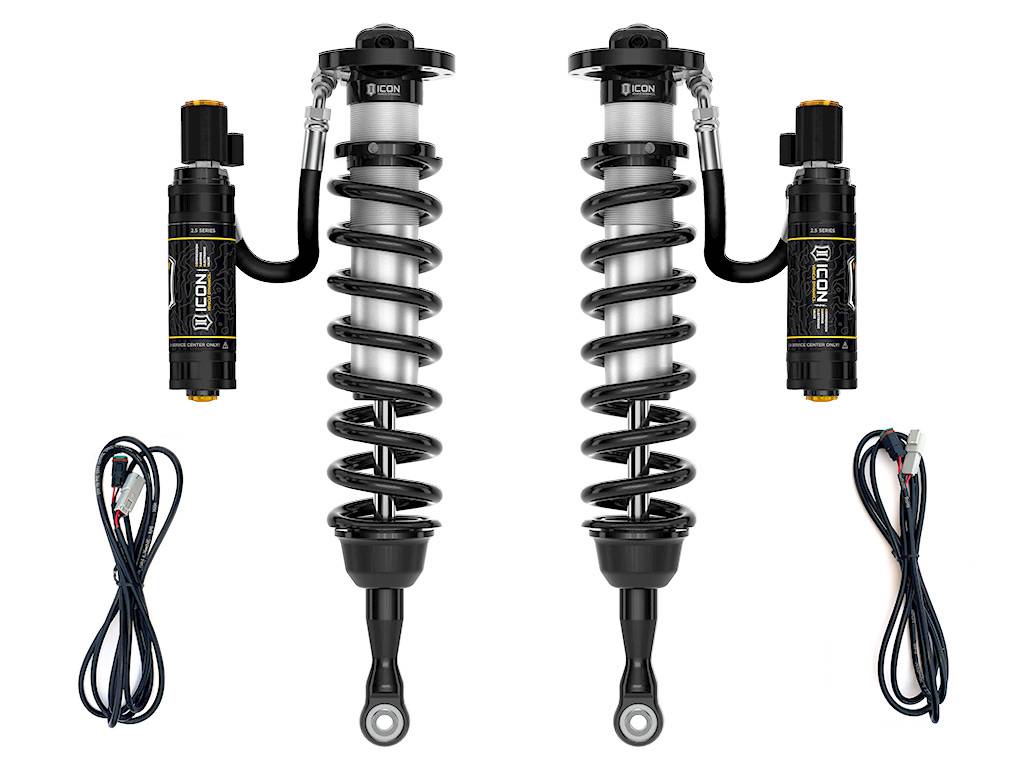

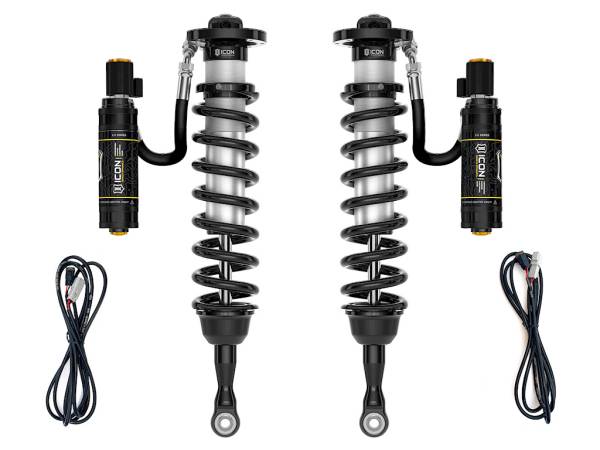

ICON Vehicle Dynamics 14-21 TUNDRA 2.5 VS RR CDEV COILOVER KIT 58750E

Coilover Spring and Shock Assembly

(0) Reviews: Write first review
FRDK-58750E

2014-2021 TOYOTA TUNDRA 2.5 VS REMOTE RESERVOIR CDEV COILOVER KIT

  • ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
  • Increased wheel travel and ride quality over stock
  • Vehicle specific tuned for superior shock damping and control
  • Adjustable for 1-3" of lift height over stock
  • ICON engineered Eibach Springs

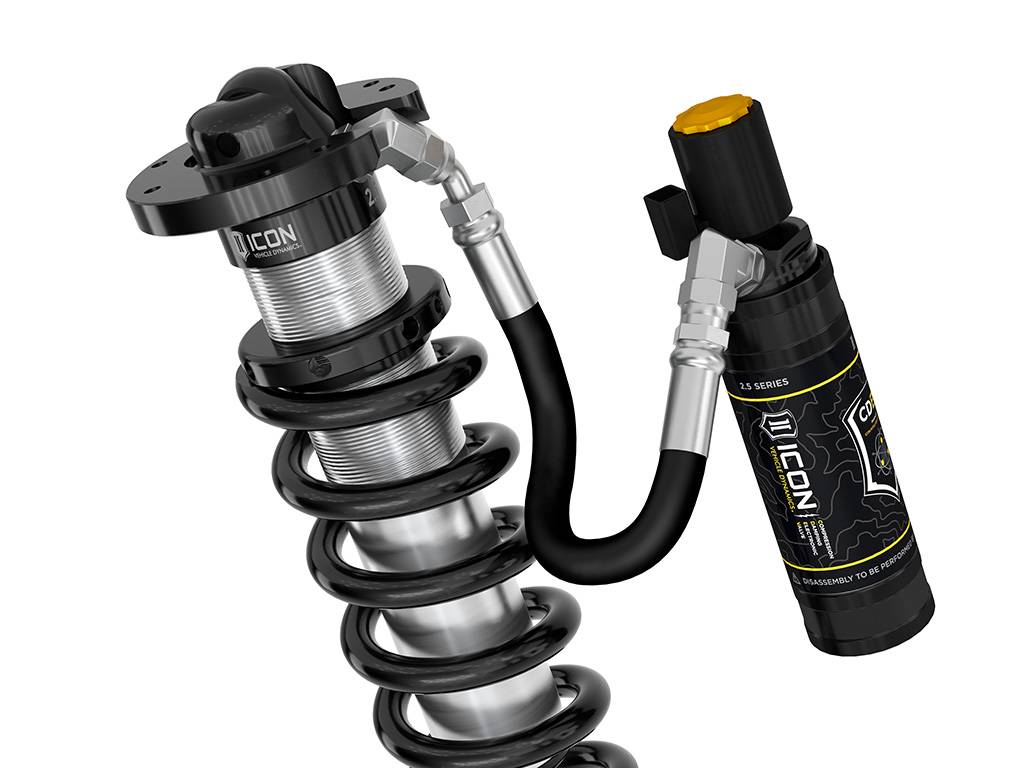

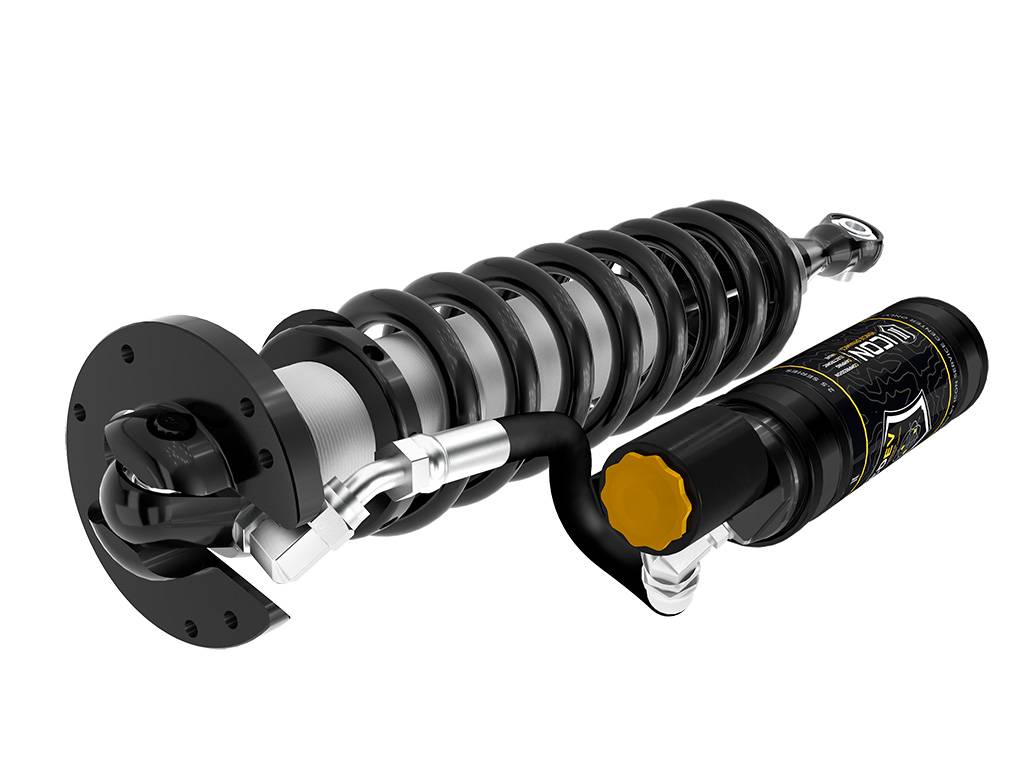

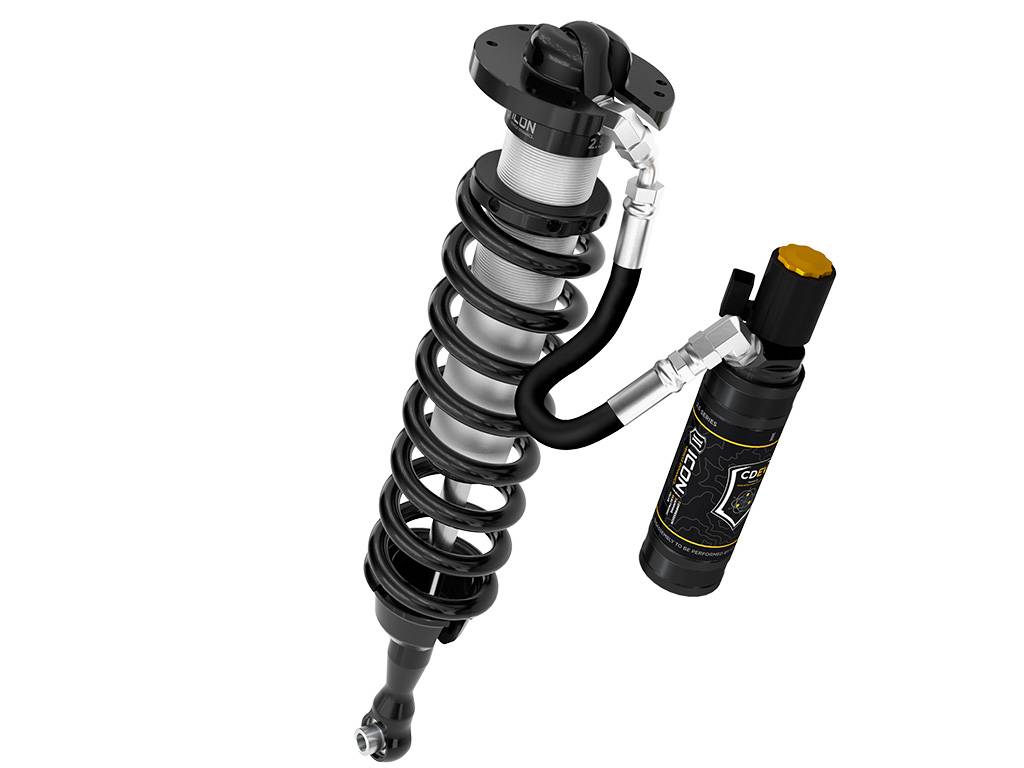

  • External reservoirs to attain cooler operating temperatures during extended off-road use
  • 6061 Aircraft grade aluminum CNC machined components
  • Corrosion resistant CAD plated shock bodies with 7/8" induction hardened, chrome plated shafts
  • FK rod end bearings for extended longevity and minimal deflection
  • Bolt-on kit - no cutting or welding necessary for installation
  • 100% Rebuildable
  • 100% Revalveable

Pricing: $2,699.95

Qty:
Free Ground Shipping On All Orders over $100.00 (some exclusions apply)

Description

The ICON Vehicle Dynamics V.S. Series 2.5” remote reservoir coilover shocks w/ CDCV are an incredible upgrade for the front end of the 2014-2021 Toyota Tundra. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while offering 1-3” of lift height adjustability for use of larger, more aggressive wheel and tire combinations. ICON's larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. The ICON CDE Valve upgrade is included for those desiring an easy way to tune the ride electronically from inside the vehicle.

  • Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly.

    OEM Wheels & Tires Fitment: Yes

  • Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 5.75” Backspace / 25mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 6.00” Backspace / 25mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys | 20x9" w/ 5.625” Backspace / 16mm Offset
  • Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
  • TECH NOTE: Also requires installation of IIC kit (Part # 53506) and CDEV rear shocks (Part # 57823EP)

    • Details

    Categories

    Shipping Information

    • Item Requires Shipping
    • 63.0 lbs.
    • W13.0000” x H7.0000” x L31.0000”
