ICON Vehicle Dynamics 08-10 FORD F250/F350 4.5" STAGE 4 SUSPENSION SYSTEM W RADIUS ARM K64553R

Suspension Lift Kit

(0) Reviews: Write first review
FRDK-K64553R

2008-2010 FORD F250/F350 SUPER DUTY 4.5" LIFT STAGE 4 SUSPENSION SYSTEM WITH RADIUS ARM

  • 50% increase in wheel travel
  • 100% bolt-on system - no drilling, cutting or welding necessary for install
  • Less body-roll than stock truck
  • 4.5" more travel from ride height to front bump stops
  • Dual rate coil spring
  • Lifetime guarantee that coil springs won’t sag
  • Clears 35" tall tires & 37" tall tires w/ minor trimming
  • No change in towing capacity
  • No drive shaft modifications needed
  • Corrosion resistant anodized aluminum shock bodies with 7/8" shafts (2.5 Aluminum Series shocks)
  • Fabricated radius arms with drop brackets offer on vehicle caster adjustment, increased strength, and improved tire clearance at steering lock

Pricing: $5,829.55

Qty:
Free Ground Shipping On All Orders over $100.00 (some exclusions apply)

Description

This 4.5" System for the 2008-2010 Super Duty is one the best riding suspension systems ICON has ever developed. This system has been engineered using the highest quality materials and components. The dual rate front coil springs combined with our ICON 2.5 Aluminum Series CDCV shocks give these trucks the performance they so desperately need. This system comes complete with front coils, shocks, radius arm drop down brackets, rear blocks and U-bolts and our patented adjustable track bar giving the front end of these trucks perfect track alignment. The Stage 4 system also includes shocks that feature the ICON Compression Damping Control Valve (CDCV) and our 4-Link kit for the ultimate in shock technology and suspension technology.

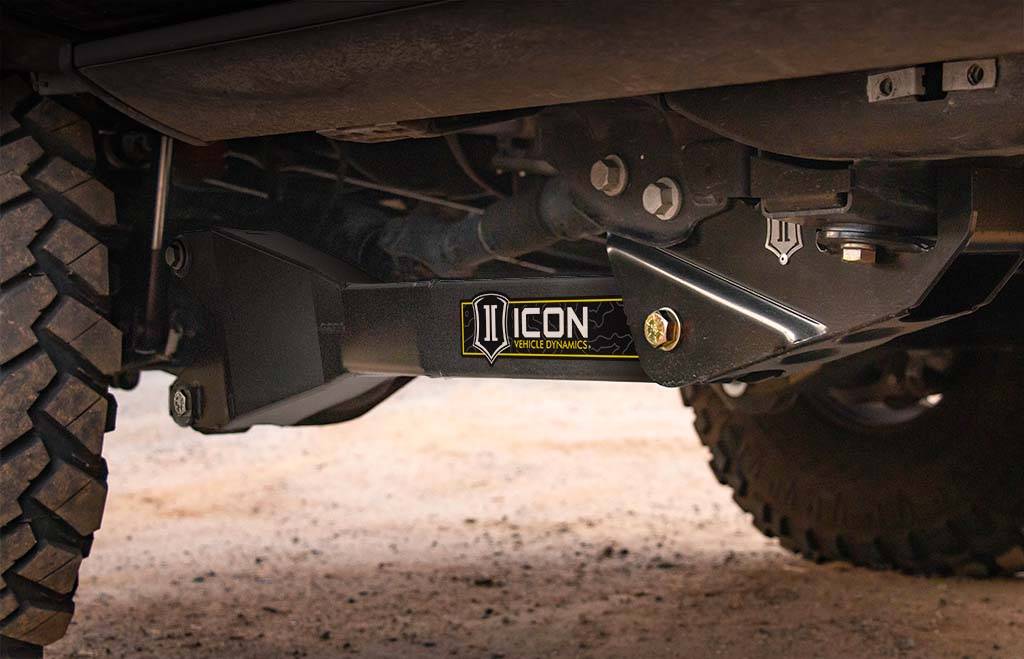

  • This Stage 4 system sees the inclusion of the ICON Vehicle Dynamics Ford Super Duty Radius Arm System that feature a sealed pivot bushing that minimizes road feedback and ensures a long life and quiet operation. Additionally, their fabricated, fully boxed design ensures strength and utilizes a profile optimized for tire clearance at full steering lock, making a 37” tall tire clear without coming in contact with the radius arm.

    OEM Wheels & Tires Fitment: Yes

  • Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 5.00” Backspace / 6mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 5.25” Backspace / 6mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys | 20x9" w/ 5.25” Backspace / 6mm Offset
  • Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
  • APPLICATION NOTE #6: SPRINGS ARE RATED FOR DIESEL ENGINES ONLY
  • APPLICATION NOTE #8: THIS SYSTEM MAY REQUIRE A CARRIER BEARING DROP BRACKET KIT (33700)
  • APPLICATION NOTE #21: NOT APPLICABLE ON VEHICLES EQUIPPED WITH A MANUAL TRANSMISSION
  • APPLICATION NOTE #31: ‘08 - CURRENT SUPERDUTY MODELS WITH GAS ENGINES MAY NEED EXHAUST MODIFIED TO CLEAR FRONT DRIVESHAFT
  • APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
  • Ships in multiple boxes

    • Details

    Categories

    Shipping Information

    • Item Requires Shipping
    • 302.0 lbs.
    • W12.0000” x H6.0000” x L27.0000”
    • Free Ground Shipping On All Orders over $100.00 (some exclusions apply)
