ICON Vehicle Dynamics 05-07 FORD F250/F350 7" STAGE 5 SUSPENSION SYSTEM W RADIUS ARM K67104R

Suspension Lift Kit

(0) Reviews: Write first review
FRDK-K67104R

2005-2007 FORD F-250/F-350 SUPER DUTY 7" LIFT STAGE 5 SUSPENSION SYSTEM WTIH RADIUS ARM

  • Approximately 50% increased front wheel travel over stock
  • One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
  • FK Rod End bearings provide extended longevity and minimal deflection
  • Lifetime guarantee against coil spring breakage or sag
  • Lifetime guarantee against ICON fabricated component breakage or manufacturer defect
  • ICON-engineered dual rate coil springs deliver exceptional vehicle control over varying terrain
  • Progressive leaf springs improve ride quality without reducing towing capacity
  • Fabricated radius arms with drop brackets offer on vehicle caster adjustment, increased strength, and improved tire clearance at steering lock
  • ICON CDC Valve allows for 10 clicks of quick and easy compression adjustability
  • ICON shocks feature vehicle specific tune for superior performance and ride quality
  • Shocks are fully rebuildable and re-valvable

Pricing: $7,219.55

Qty:
Free Ground Shipping On All Orders over $100.00 (some exclusions apply)

Description

This ICON Vehicle Dynamics 7” suspension system is a great way to lift your 4WD 2005-2007 Ford F250/350 Super Duty while drastically improving ride quality and performance. This suspension system is perfect for on-road and off-road use including towing, job site duty, and provides ultimate performance for extreme off-road adventure. ICON's 7" Stage 5 System is comprised of dual rate coil springs, progressive leaf springs, 4-Link kit, ICON CDC Valve 2.5 Aluminum Series piggyback reservoir front and rear shocks, plus all of the necessary hardware for installation.

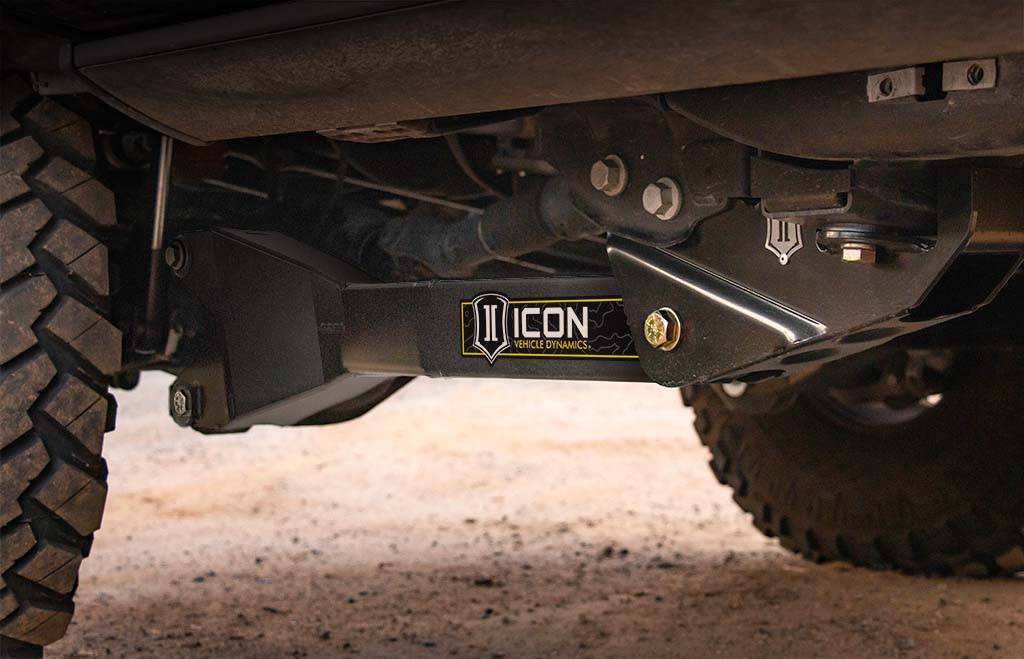

  • This Stage 5 system sees the inclusion of the ICON Vehicle Dynamics Ford Super Duty Radius Arm System that feature a sealed pivot bushing that minimizes road feedback and ensures a long life and quiet operation. Additionally, their fabricated, fully boxed design ensures strength and utilizes a profile optimized for tire clearance at full steering lock, making a 37” tall tire clear without coming in contact with the radius arm.

    OEM Wheels & Tires Fitment: Yes

  • Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 5.00” Backspace / 6mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 5.25” Backspace / 6mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys | 20x9" w/ 5.25” Backspace / 6mm Offset
  • Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
  • APPLICATION NOTE #6: SPRINGS ARE RATED FOR DIESEL ENGINES ONLY
  • APPLICATION NOTE #21: NOT APPLICABLE ON VEHICLES EQUIPPED WITH A MANUAL TRANSMISSION
  • APPLICATION NOTE #28: PINCH WELD ON ‘05-’10 SUPERDUTY RADIUS ARMS MAY COME IN CONTACT WITH RADIUS ARM DROP BRACKET HARDWARE
  • APPLICATION NOTE #29: 7” SYSTEMS USING A 4-LINK IN PLACE OF THE FACTORY RADIUS ARMS DO NOT REQUIRE THE USE OF ALIGNMENT CAMS. CASTER CAN BE ADJUSTED BY THE LOWER LINK ARMS
  • APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
  • APPLICATION NOTE #57: RETAINS FACTORY BLOCK FOR TRUCK TO SIT LEVEL WITH FRONT OF TRUCK
  • Ships in multiple boxes

    • Details

    Categories

    Shipping Information

    • Item Requires Shipping
    • 507.0 lbs.
    • W48.0000” x H10.0000” x L48.0000”
    • Free Ground Shipping On All Orders over $100.00 (some exclusions apply)
