ICON Vehicle Dynamics 08-10 FORD F250/F350 4.5" STAGE 4 SUSPENSION SYSTEM K64553

Suspension Lift Kit

(0) Reviews: Write first review
FRDK-K64553

2008-2010 FORD F250/F350 4.5" LIFT STAGE 4 SUSPENSION SYSTEM

  • 50% increase in wheel travel
  • Less body-roll than stock truck
  • 4.5" more travel from ride height to front bump stops
  • Dual rate coil spring
  • Lifetime guarantee that coil springs won’t sag
  • Clears 35" tall tires & 37" tall tires w/ minor trimming
  • No change in towing capacity
  • No drive shaft modifications needed
  • Corrosion resistant anodized aluminum shock bodies with 7/8" shafts (2.5 Aluminum Series shocks)
  • 100% bolt-on system - no drilling, cutting or welding necessary for install

Pricing: $6,137.50

Qty:
Free Ground Shipping On All Orders over $100.00 (some exclusions apply)

Description

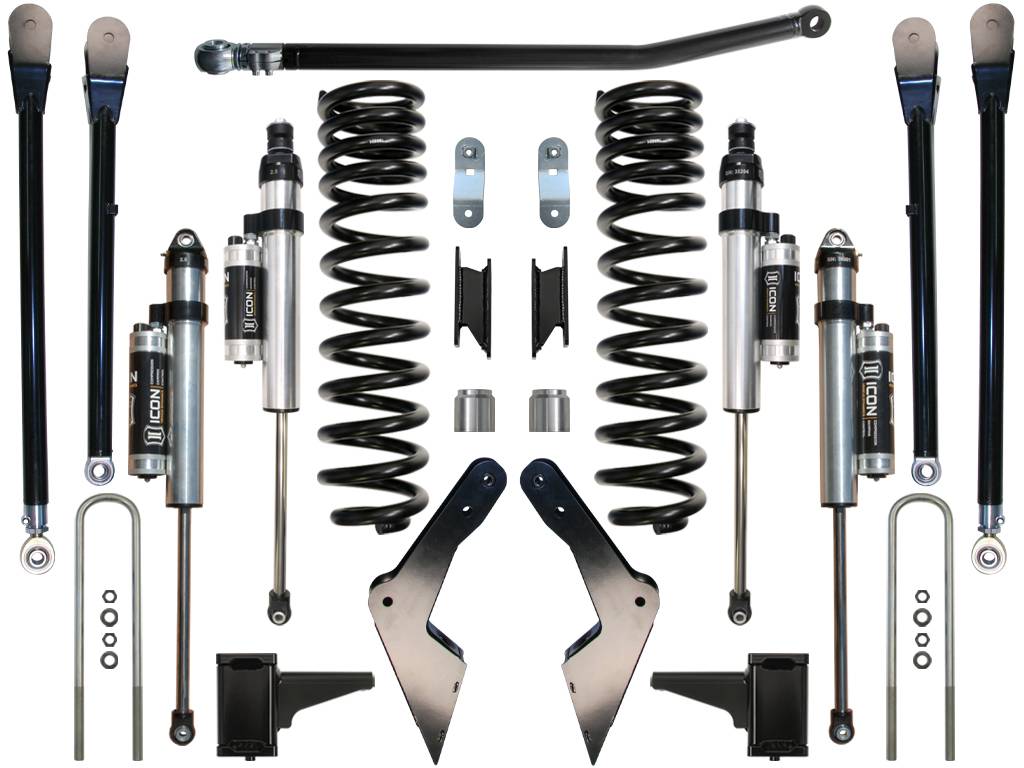

This 4.5" System for the 2008-2010 Super Duty is one the best riding suspension systems ICON has ever developed. This system has been engineered using the highest quality materials and components. The dual rate front coil springs combined with our ICON 2.5 Aluminum Series CDCV shocks give these trucks the performance they so desperately need. This system comes complete with front coils, shocks, radius arm drop down brackets, rear blocks and U-bolts and our patented adjustable track bar giving the front end of these trucks perfect track alignment. The Stage 4 system also includes shocks that feature the ICON Compression Damping Control Valve (CDCV) and our 4-Link kit for the ultimate in shock technology and suspension technology.

APPLICATION NOTE #6: SPRINGS ARE RATED FOR DIESEL ENGINES ONLY

  • APPLICATION NOTE #21: NOT APPLICABLE ON VEHICLES EQUIPPED WITH A MANUAL TRANSMISSION
  • APPLICATION NOTE #28: PINCH WELD ON ‘05-’10 SUPERDUTY RADIUS ARMS MAY COME IN CONTACT WITH RADIUS ARM DROP BRACKET HARDWARE
  • APPLICATION NOTE #31: ‘08 - CURRENT SUPERDUTY MODELS WITH GAS ENGINES MAY NEED EXHAUST MODIFIED TO CLEAR FRONT DRIVESHAFT
  • APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
  • Ships in multiple boxes
  • OEM Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 5.00” Backspace / 6mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 5.25” Backspace / 6mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys | 20x9" w/ 5.25” Backspace / 6mm Offset
  • Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)

    • Details

    Categories

    Shipping Information

    • Item Requires Shipping
    • 298.0 lbs.
    • W12.0000” x H6.0000” x L27.0000”
    • Free Ground Shipping On All Orders over $100.00 (some exclusions apply)
