Fabtech 4" 4LINK SYS W/COILS & PERF SHKS 2008-16 FORD F250/F350 4WD K2212

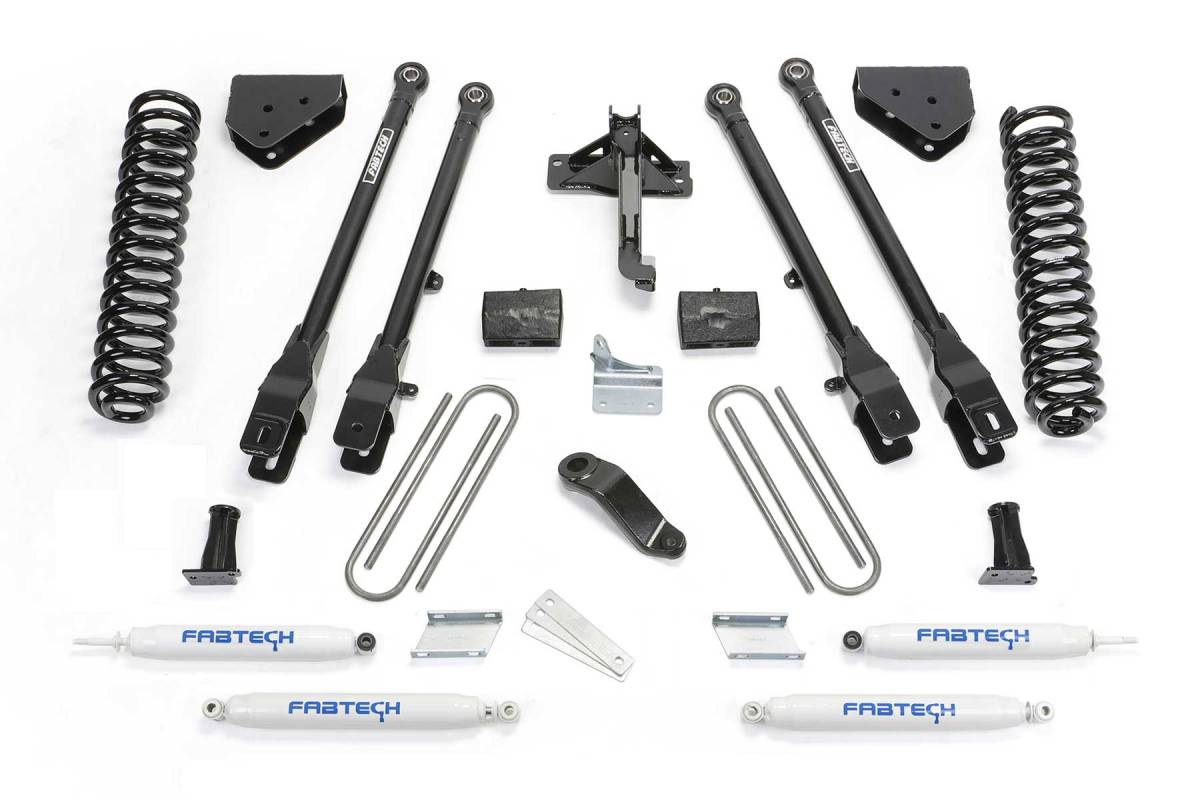

At the top of our Super Duty line is our famous bolt-on 4 Link System that provides unsurpassed articulation and wheel travel. These 2in diameter heavy wall links feature race style 1in Uniballs for superior strength. Thick 1/4in steel brackets secure the 4 Links to the frame without cutting or welding. This 4 Link system is comes complete with our replacement Coil Springs, Sway Bar drops, Pitman Arm, and a rear Block & U-Bolt kit. Includes Performance front and rear shocks. Estimated installation time is 6-7 hours. Amount of holes to drill - 6. No welding required.

TIRE SIZE - 35/12.50R20 WHEEL - 20X10 W/5" BS W/MINOR TRIMMING; TIRE SIZE - 315/70R17 WHEEL - 17X8 W/4 1/2" BS W/MINOR TRIMMING; TIRE SIZE - 325/65R18 WHEEL - 18X9.5 W/4 3/4" BS W/MINOR TRIMMING
